Product Description

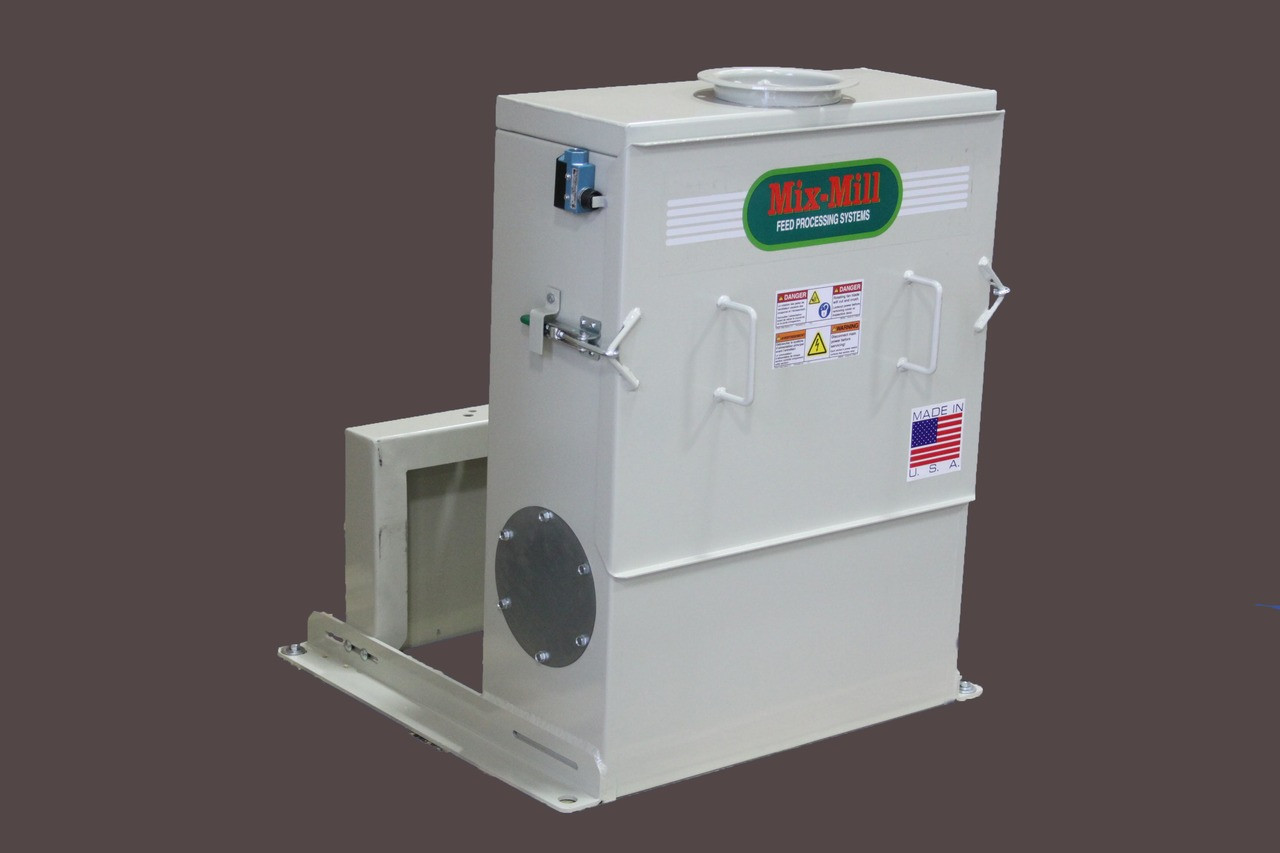

The Sentry 1000 Feed Processing Hammermill is an economical and efficient 90 degree side discharge mill. Product is discharged with either 3 1/2" or 6" discharge augers to meet specific output capacity requirements. Product inflow is through either a 6" or a 4" top inlet, which can be fitted with an optional slide gate and various hoppers. Magnets are mounted on the intake to remove ferrous material contaminants.
Standard Features:
- 5 HP Single Phase
- 20 HP – 3 Phase
- Rugged 18" Full Circle Grinding Chamber
- Heavy Duty Wear Plates (front & rear)
- 360 " Degree 3/16" Screen (other sizes from 1/16" " 3/4" are available)
- 15 Case Hardened, Beveled Hammers
- 6" Diameter Top Inlet
- Door Interlock Safety Switch
- Housing with Side Discharge
- Base Auger Motor and Belt Guard
Capacities:
Corn 7,000lbs/hr (3175 Kg/hr)
Wheat 8,000lbs/hr (3900 Kg/hr)
Based on 3/16" screen and 10 HP motor. Capacities will vary with the type and nature of the ingredient as well as the mill HP and screen opening size.
Options:
- Mill Motor
- 4" Diameter Top Inlet
- 4" or 6" Inlet Slide Gate
- 3 1/2" or 6" Auger Discharge Package
Includes:
- Mill
- 5 HP Motor
- 1/2 HP Discharge Motor
- BUHG,QD SD 1.125
- Includes 1 Screen size of your choice
Available In:
- 7-1/2 HP
- 10 HP Single PH
Discharge package sold separately.
