Product Description

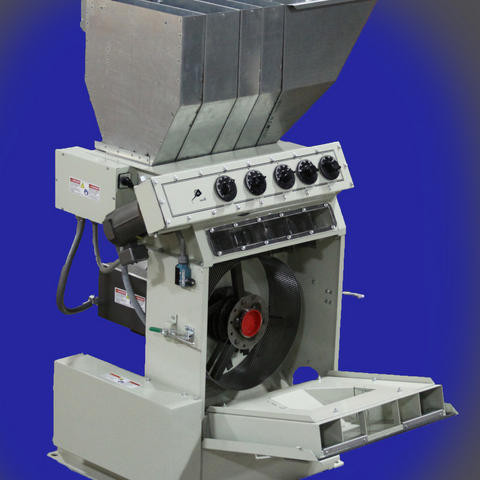

The Sentry 3000 Feed Processing Hammermill lets you accurately proportion, grind and blend up to 5 different ingredients simultaneously. Ingredient inflow is provided by five seperate augers which permit grinding and mixing feed. The mill is equipped with a wall-mounted, dust-tight, electric control panel for safety and reliability. Its circuitry permits the mill to be safely and easily started, monitored, and shutdown. Product side discharge is through your choice of either 3 1/2" or 6" augers to meet specific output capacity requirements.
Standard Features:
- Rugged 18" Full Circle Grinding Chamber
- Heavy Duty Wear Plates (front & rear)
- 360 " Degree 3/16" Screen (other sizes from 1/16" " 3/4" are available)
- 15 Case Hardened, Beveled Hammers
- Five Individual Inlet Augers fitted with Magnetic Guards
- Accurate Positive Gear Drive Five Compartment Proportioner
- Door Interlock Safety Switch
- Housing with Side Discharge
- Base Auger Motor and Belt Guard
Capacities:
Corn 7,000lbs/hr (3175 Kg/hr)
Wheat 8,000lbs/hr (3900 Kg/hr)
Based on 3/16" screen and 10 HP motor. Capacities will vary with the type and nature of the ingredient as well as the mill HP and screen opening size.
Options:
- Mill Motor
- Electric Control Panel
- 3 1/2" or 6" Auger Discharge Package
